Product Details
Place of Origin: NINGBO
Brand Name: NBLK
Certification: ISO
Model Number: JJCS
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Get the latest
Packaging Details: Wooden case
Delivery Time: 3-7 days
Payment Terms: T/T
Supply Ability: 500sets/month
Capacity: |
30 Kn 50kn |
Warrenty: |
1 Year |
Drum Size: |
230mm 300mm |
Power: |
9KW |
Gear Box: |
Six |
Engine: |
Diesel And Gasonline |
Capacity: |
30 Kn 50kn |
Warrenty: |
1 Year |
Drum Size: |
230mm 300mm |
Power: |
9KW |
Gear Box: |
Six |
Engine: |
Diesel And Gasonline |

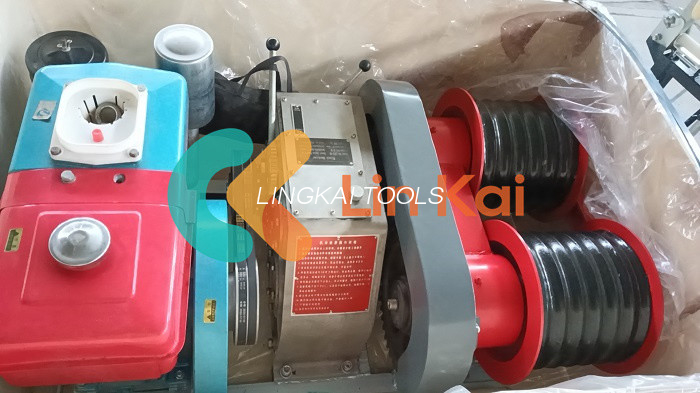

The Three Tons Dual-Bull Wheel Winch is a perfect equipment designed to meet the needs of line construction. It is ideal for traction and lifting operations in field construction for laying electricity, post, and telecommunications lines.
This powerful winch is primarily used in erecting pylons, laying traction wire, stringing, and other essential operations. The Double capstan structure is an advantage that leads to minimal damage to the wire rope, providing safety during operations.
This machine is highly appreciated by the power sector and construction units located in China and is known worldwide for its efficiency and effectiveness.
| Item No. | 09151 | 09152 | |
| Model | JJCS-30 | JJQS-30 | |
| Engine Model | Diesel engine R175 | Honda GX270 | |
| Engine Power(hp) | 6 | 9 | |
| Engine Speed (rpm) | 2600 | 3000 | |
| Pull force (KN) / Pull speed (m/min) | I shift | 30/5.7 | 30/7.43 |
| II shift | 18.9/9.1 | 19.2/11.8 | |
| III shift | 7.6/22.7 | 7.2/31.4 | |
| Reverse shift | -/6.5 | -/8.4 | |
| Diameter of Capstan (mm) | Φ240 | Φ240 | |
| Dimension (mm) | 1000 x 670 x 600 | 1000 x 670 x 600 | |
| Weight (kg) | 260 | 242 | |
Clutch and hand braking are essential components in the operation of the machine. The clutch serves to transfer the power of the engine to the synchronous movement of the outer cone-shaped block, through the pulley (or elastic coupling device). The disengagement position is located in the middle of the clutch. It is important to note that the clutch contains two bearings, 6205-2Z and 51110. It is recommended to replace the bearing every 1000 hours or based on actual operation. Before assembling, be sure to fill with lithium grease.
The gearbox is another integral part of the machine. It is made up of a shift section, a brake section, and a deceleration section. The shift section transforms into three forward gears and a reverse gear using high-precision carburizing gear. The power is passed to the clutch shaft through a reduction gear. The machine's brake is an overrunning clutch, which has an automatic braking function. Along with the clutch handle, the hand brake provides two sets of brake devices for the construction machine to ensure safety.
The deceleration part of the gearbox contains a three-stage reduction gear that carries out large transmission ratio, small size, and light weight.
The Three Tons Dual-Bull Wheel Winch is a piece of machinery designed for use in mountainous areas and outside fields. It is used as both a traction and lifting device, and does not require power to operate.
The machine is designed with a double capstan, which means that the traction is strong while the damage done to the steel wire rope is minimized. Its components include an engine, clutch, gearbox with brake, reel, and others.
One of the standout features of this winch is its ease of use. It is designed to be simple to operate, with easy maintenance and repair included. This makes it an ideal choice for those who need to quickly and efficiently move heavy loads in outdoor environments.
