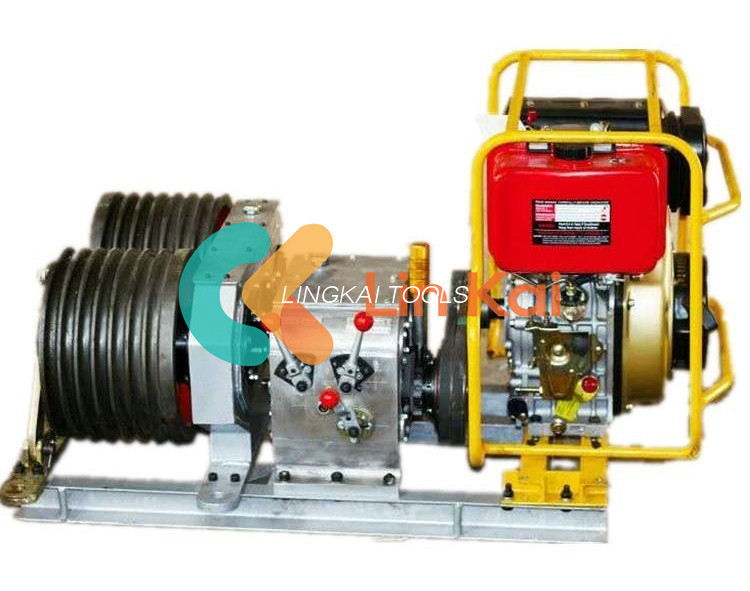

The Dual-Bull Wheel Winch is an essential machine designed and produced for line construction needs. Serving as a reliable traction and lifting device in field construction, it is predominantly used for erecting pylons, traction wire laying, stringing, and other operations regarding electricity, post, and telecommunications lines.
The machine's double capstan structure ensures minimal damage to the wire rope during operations, adding to its appeal among the power sector and construction units in China and our customers worldwide.
The Three Tons Dual-Bull Wheel Winch is an ideal machine for all of your needs. Rely on its superior traction and lifting capacity to make your field construction operations a success.
TECHNICAL DATA
| Item number | 09162A | 09162B | 09162 | |
| Model | JJCS-50 | JJQS-50 | JJCS-50 | |
| Engine | Model | Diesel Engine | Gasoline Engine | Diesel Engine |
| Power(KW) | 9 | 9 | 9 | |
| Speed(rpm) | 2000 | 3600 | 2000 | |
|
Pull(KN) speed force/ (M/MIN) |
Slow | 50/5 | 50/5 | 50/3.1,40/9.6 |
| Moderate | 25/9 14/14 | 25/9 14/14 | 45/7.1,17/22.3 | |
| Fast | 8/22 | 8/22 | 33/11.3,10/35.6 | |
| Reverse | -/5 -/9 | -/5 -/9 | -/7.35 | |
| Drum bottom of groove diamete(MM) | Φ230 | Φ230 | Φ300 | |
Clutch & Hand Braking
The clutch is responsible for transferring the power of the engine to the synchronous movement of the outer cone-shaped block through the pulley or elastic coupling device. The middle position of the clutch is the disengagement position.
It is important to note that there are two bearings, 6205-2Z and 51110, in the clutch. It is recommended to replace the bearing every 1000 hours or based on actual operation. Before assembling, fill the clutch with lithium grease.
Gearbox
The gearbox is composed of a shift section, a brake section, and a deceleration section.
The shift section converts the power to three forward gears and one reverse gear with the help of high precision carburizing gear. The power is then passed to the clutch shaft through the reduction gear.
As a safety measure, an overrunning clutch is used as the machine's brake. It has an automatic braking function to ensure safety.
The hand brake is controlled by the clutch handle and provides a secondary safety brake. The deceleration section comprises three-stage reduction gear, which results in large transmission ratio, small size, and light weight.
The Three Tons Dual-Bull Wheel Winch is specifically designed for use in outdoor fields where power is not available. It serves as a reliable traction and lifting machinery capable of meeting the demands of mountainous and remote locations. This machine has a large traction force and it is extremely convenient to use.
The double capstan design of the winch helps to minimize the damage to its steel wire rope, thereby promoting longevity. The components of the Three Tons Dual-Bull Wheel Winch include an engine, clutch, gearbox (with brake), reel and other essential parts.
What's more, this winch is very user-friendly and easy for people to operate. It also requires minimal maintenance and is easily repairable.
The Tower Erection Tools product comes with technical support and services to ensure efficient and safe installation of towers. Our team of experts is available to provide guidance on the proper use of the tools and troubleshoot any issues that may arise during the erection process. We also offer training programs to educate users on best practices for tower installation. In addition, we provide maintenance services to keep your tools in optimal condition and extend their lifespan. Contact us for more information on our technical support and services.
