Product Details
Place of Origin: NINGBO
Brand Name: NBLK
Certification: ISO
Model Number: JJCS JJQS
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Get the latest
Packaging Details: Wooden case
Delivery Time: 3-7 days
Payment Terms: T/T
Supply Ability: 500sets/month
Drum Size: |
230mm 300mm |
Gear Box: |
Six |
Engine: |
Diesel And Gasonline |
Capacity: |
30 Kn 50kn |
Power: |
9KW |
Warrenty: |
1 Year |
Drum Size: |
230mm 300mm |
Gear Box: |
Six |
Engine: |
Diesel And Gasonline |
Capacity: |
30 Kn 50kn |
Power: |
9KW |
Warrenty: |
1 Year |

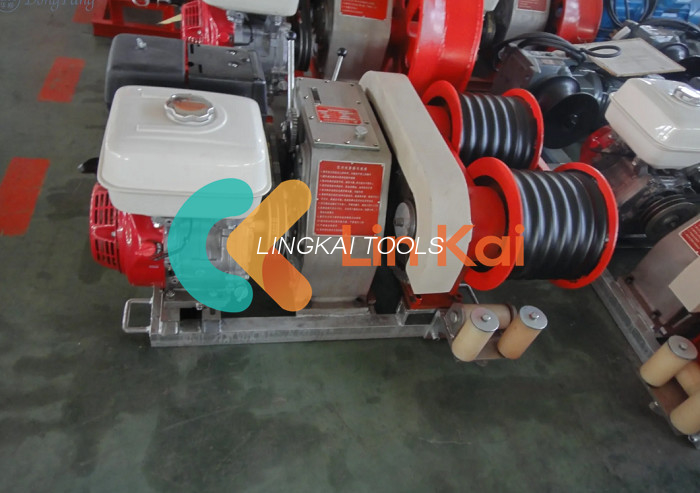

The Three Tons Dual-Bull Wheel Winch is specifically designed and produced to meet the requirements for line construction work. It is an ideal traction and lifting machine for field construction purposes. The machine is mainly used for erecting pylons and for traction wire laying and stringing operations that are involved in electricity, post and telecommunications line constructions.
The machine boasts of a unique double capstan structure which results in very minimal damage to the wire rope, making it extremely popular among the power sector and construction units in China, as well as worldwide customers.
With its high-quality design and exceptional performance, the Three Tons Dual-Bull Wheel Winch is the perfect choice for those looking for an efficient and reliable traction and lifting machine. It is an essential tool for professionals working in the field of line construction.
TECHNICAL DATA
| Item number | 09162A | 09162B | 09162 | |
| Model | JJCS-50 | JJQS-50 | JJCS-50 | |
| Engine | Model | Diesel Engine | Gasoline Engine | Diesel Engine |
| Power(KW) | 9 | 9 | 9 | |
| Speed(rpm) | 2000 | 3600 | 2000 | |
|
Pull(KN) speed force/ (M/MIN) |
Slow | 50/5 | 50/5 | 50/3.1,40/9.6 |
| Moderate | 25/9 14/14 | 25/9 14/14 | 45/7.1,17/22.3 | |
| Fast | 8/22 | 8/22 | 33/11.3,10/35.6 | |
| Reverse | -/5 -/9 | -/5 -/9 | -/7.35 | |
| Drum bottom of groove diamete(MM) | Φ230 | Φ230 | Φ300 | |
Clutch & Hand Braking
The clutch is responsible for transferring the power of the engine to the synchronous movement of the outer cone-shaped block, which is done through the pulley or elastic coupling device. In the middle position, it is the disengagement position.
Attention: There are two bearings 6205-2Z and 51110 present in the clutch. It is highly advisable to replace these bearings every 1000 hours or to replace them based on the actual operation. Before assembling, remember to fill them with lithium grease.
Gearbox
The gearbox consists of a shift section, a brake section, and a deceleration section. The shifting part is transformed into three forward gears and a reverse gear, done using high precision carburizing gear. The power is passed to the clutch shaft through the reduction gear. As for the machine's brake, it uses an overrunning clutch with automatic braking function.
Coupled with the aforementioned clutch handle control of the hand brake, the machine comes equipped with two sets of brake devices to ensure the safety of construction. Lastly, the deceleration part consists of a three-stage reduction gear that carries out large transmission ratio, small size, and light weight.
Three Tons Dual–Bull Wheel Winch is a powerful machinery that is perfect for outside field work, especially in mountainous areas. This machinery is designed to function as both a traction and lifting tool.
What makes this machine stand out is its strong traction capabilities, which enable it to pull heavy loads with ease. Additionally, the operation of the machine is straightforward, making it easy to use for anyone.
The damage to the steel wire rope is minimal because of the double capstan design, which ensures that the wire rope is evenly loaded at all times. Furthermore, the machine comprises of an engine, a clutch, a gearbox (with brake), reel, and other essential components that ensure that the machine runs smoothly.
This machinery is built for durability, and its design makes it easy to maintain and repair. Therefore, you can rest assured that it will serve you for many years to come.
