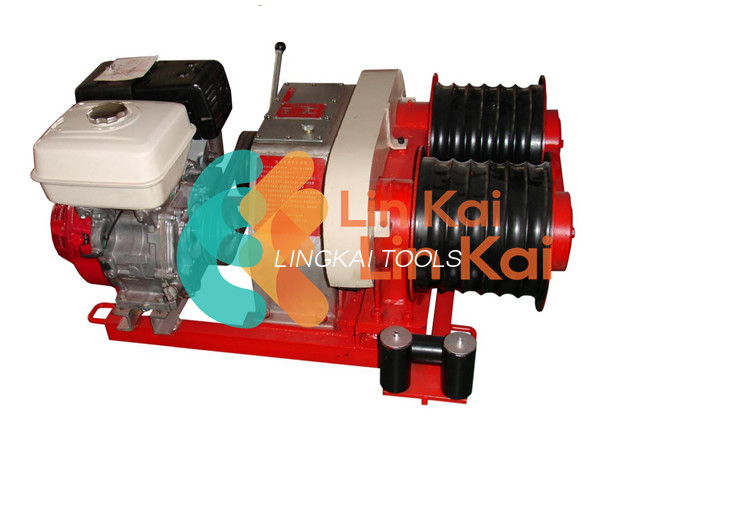

Diesel Engine 9KW Three Tons Dual Bull Wheel Winch Tower Erecting Equipment

Product Description:

The Three Tons Dual-Bull Wheel Winch is a specialized machine designed and produced to meet the needs of line construction projects. It serves as an ideal traction and lifting machine for field construction, typically used in erecting pylons and performing other operations related to electricity, post, and telecommunications lines.

The winch features a double-capstan structure which substantially reduces damage to the wire rope. It has gained popularity not only in China's power sector and construction units but also with our customers throughout the world.

Features:

Clutch and hand braking are important functions in the operation of machinery. The clutch is responsible for transferring the engine's power to the outer cone-shaped block's synchronous movement through the pulley or elastic coupling device. The middle position of the clutch is the disengagement position. It's important to note that there are two bearings, 6205-2Z and 51110 in the clutch. Maintenance is recommended every 1000 hours, or replacement based on actual operation, and the bearings should be filled with lithium grease before assembling to ensure proper function.

The gearbox is a critical component in machinery, consisting of a shift section, brake section, and deceleration section. The shifting part of the gearbox is transformed into three forward gears and one reverse gear, using high precision carburizing gears. The power is transferred to the clutch shaft through the reduction gear. An overrunning clutch is used as the machine's brake with an automatic braking function. Combined with the clutch handle control of the hand brake, the machinery has two sets of brake devices to ensure the safety of construction.

The deceleration part of the gearbox consists of a three-stage reduction gear, which carries out large transmission ratios while being small in size and lightweight. As an essential part of machinery, gearbox operation should be carefully monitored and maintained for optimal performance.

Applications:

The Three Tons Dual–Bull Wheel Winch is a powerful and reliable machinery used for outdoor field operations. It is specifically designed as a traction and lifting machinery to cater to the needs of mountainous areas and the outside field. The machine is highly efficient in traction and simple to operate.

The design of the winch incorporates a double capstan, which reduces the damage to the steel wire rope. This design also ensures the machine operates smoothly, even under high loads. The machine comprises of an engine, clutch, gearbox (with brake), reel, and other essential components. Its simple operation, easy maintenance, and repair make it an ideal addition to any outdoor field operation.

The Three Tons Dual–Bull Wheel Winch does not require power to operate, making it an eco-friendly option. The machine can be used in remote areas where power sources are not available. Its superior traction and lifting capacity make it a preferred choice in challenging terrain.

Support and Services:

Our Tower Erection Tools are designed to make the process of erecting towers more efficient and safe. We offer technical support and services to ensure that our customers are able to use our tools correctly and effectively. Our team of experts can provide guidance on tool selection, operation, and maintenance. We also offer repair and replacement services to ensure that our tools are always in top condition. Contact us for more information on our Tower Erection Tool technical support and services.

Packing and Shipping:

Product Packaging:

The Tower Erection Tools product comes in a sturdy cardboard box to ensure safe delivery. The packaging includes the following items:

• 1 Tower Erection Tool
• 1 Instruction Manual
• 1 Warranty Information Card

Shipping:

The Tower Erection Tools product will be shipped via standard ground shipping. Customers can expect to receive their orders within 5-7 business days from the date of purchase. Expedited shipping options are available for an additional fee.
